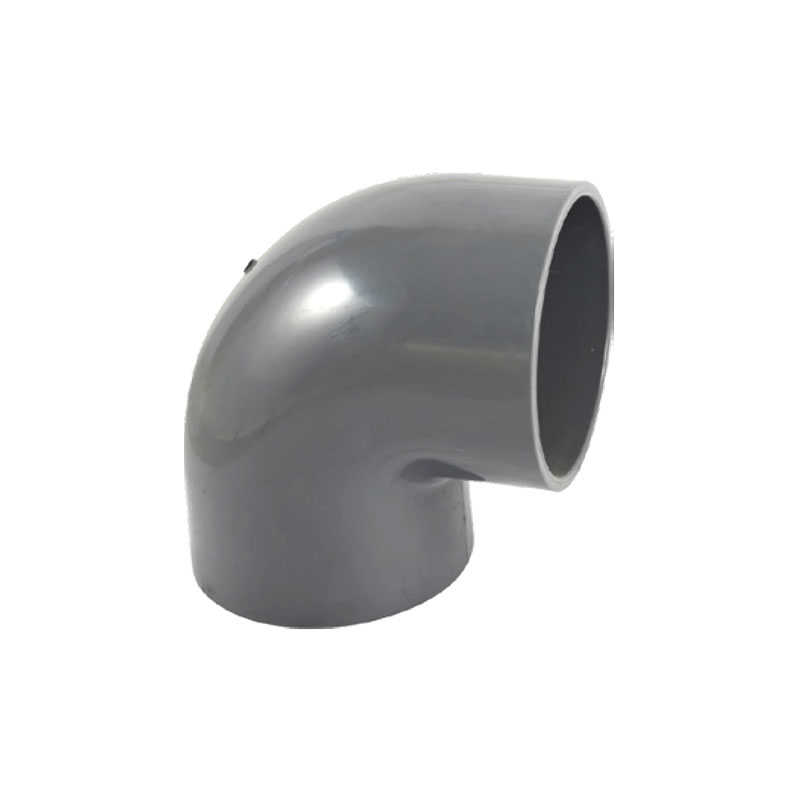

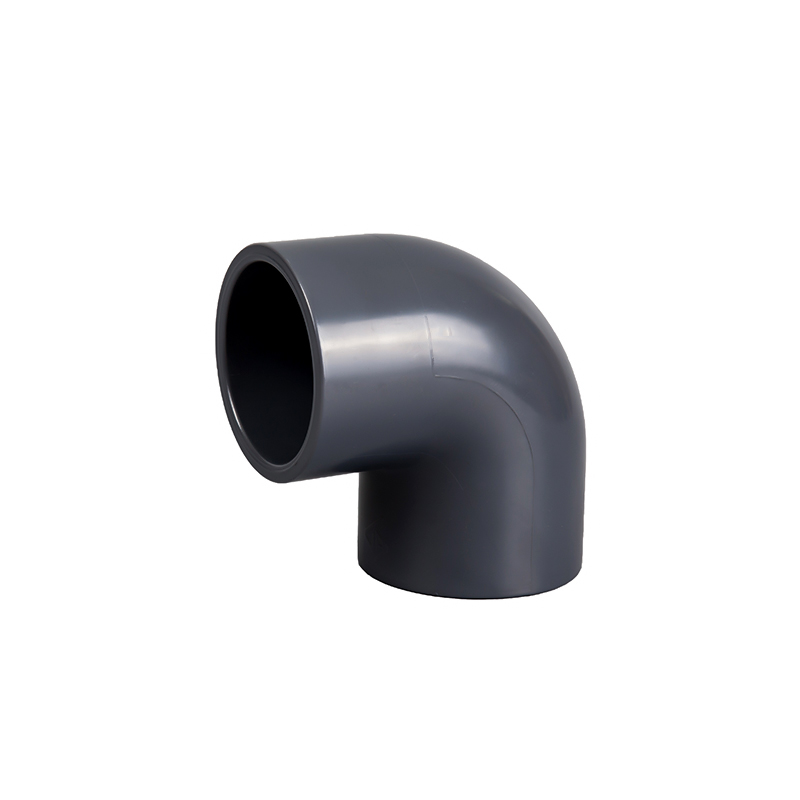

CPVC、UPVC、PVDF、PPH 90° ?彎頭
數據正在更新。 請聯系我們的銷售以獲取更多詳細信息！
DN(mm) 公稱通徑 |
DN(mm) 公稱外徑 |

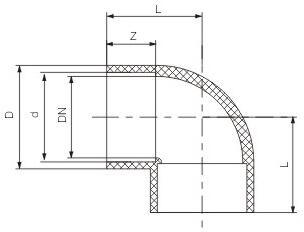

?外形尺寸 (mm) | |||
|
D |
d | L | Z | ||
|
15 |
20 |
26 |
20 |
28 |
16 |
|
20 |
25 |
32 |
25 |
34 |
20 |
|
25 |
32 |
40 |
32 |
41 |
22 |
|
32 |
40 |
50 |
40 |
49 |
27 |
|
40 |
50 |
61 |
50 |
60 |
31 |
|
50 |
63 |
75 |
63 |
76 |
38 |
|
65 |
75 |
88 |
75 |
83 |
44 |
|
80 |
90 |
105 |
90 |
97 |
51 |
|
100 |
110 |
127 |
110 |
117 |
61 |
|
125 |
140 |
160 |
140 |
150 |
75 |
|
150 |
160 |
185 |
160 |
172 |
90 |
|
200 |
225 |
253 |
225 |
230 |
110 |
|
250 |
280 |
310 |
280 |
280 |
140 |
|
300 |
315 |
350 |
315 |
340 |
150 |
|
350 |
355 |
395 |
355 |
367 |
182 |
|
400 |
400 |
433 |
400 |
413 |
205 |
|
*450 |
45 0 |
495 |
450 |
480 |
231 |
|
*500 |
500 |
540 |
500 |
535 |
256 |
|
*600 |
630 |
678 |
630 |
670 |
321 |
|
90°彎頭? |
束接/直通 |
三通 |
45°彎頭 |
法蘭 |
活套法蘭 |
管帽 |
盲板 |
四通 |
活接 |
外絲接頭 |
Y三通 |
|
|
DN15 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||||
|
DN20 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||||
|
DN25 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN32 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN40 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN50 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN65 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN80 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN100 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN125 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||
|
DN150 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||
|
DN200 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||
|
DN250 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||||
|
DN300 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||||
|
DN350 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||||
|
DN400 |
◎ |
◎ |
○ |
○ |
◎ |
◎ |
||||||
|
DN450 |
◎ |
○ |
○ |
○ |
◎ |
◎ |
||||||
|
DN500 |
◎ |
○ |
○ |
○ |
◎ |
◎ |
||||||
|
DN600 |
○ |
○ |
○ |
○ |
○ |
○ |
||||||
|
DN700 |
○ |
○ |
○ |
○ |
○ |
○ |
|
異徑三通 (DN) |
40-15 |
50-25 |
65-32 |
80-32 |
100-25 |
125-40 |
200-150 |
350-150 |
|
40-20 |
50-32 |
65-40 |
80-40 |
100-32 |
125-80 |
250-65 |
350-200 |
|
|
40-25 |
50-40 |
65-50 |
80-50 |
100-40 |
125-100 |
250-100 |
||
|
40-32 |
65-15 |
80-15 |
80-65 |
100-50 |
150-80 |
250-150 |
||
|
50-15 |
65-20 |
80-20 |
100-15 |
100-65 |
150-100 |
300-100 |
||
|
50-20 |
65-25 |
80-25 |
100-20 |
100-80 |
200-100 |
300-200 |
||
|
異徑管/大小頭? (DN) |
20-15 |
40-20 |
50-40 |
80-15 |
100-15 |
100-80 |
150-125 |
300-150 |
|
25-15 |
40-25 |
65-15 |
80-20 |
100-20 |
125-50 |
200-100 |
300-200 |
|
|
25-20 |
40-32 |
65-20 |
80-25 |
100-25 |
125-80 |
200-125 |
300-250 |
|
|
32-15 |
50-15 |
65-25 |
80-32 |
100-32 |
125-100 |
200-150 |
350×150 |
|
|
32-20 |
50-20 |
65-32 |
80-40 |
100-40 |
150-50 |
250-100 |
350×250 |
|
|
32-25 |
50-25 |
65-40 |
80-50 |
100-50 |
150-80 |
250-150 |
350×300 |
|
|
40-15 |
50-32 |
65-50 |
80-65 |
100-65 |
150-100 |
250-200 |
500×200 |
|
|
縮接/補芯? (DN) |
20-15 |
32-15 |
50-25 |
80-65 |
125-100 |
200-150 |
300-250 |
|
|
25-15 |
32-25 |
50-40 |
100-50 |
150-100 |
250-150 |
|||
|
25-20 |
40-32 |
65-50 |
100-80 |
150-125 |
250-200 |
|||
|
馬鞍街頭(DN) |
100-50 |
125-50 |
150-50 |
350-50 |
